Slotted Angle Framework Rack 2000X1800X900 Level 4

Product Code : ROAFR-160

Slotted Angle Framework Rack 2000X1800X900 Level 4

Please login to see price and product option.

Slotted Angle Framework racks are made by combining heavy-duty slotted angle components in wide sections.

Slotted angle shelving racks have its limitations in terms of its available size & loading capacity hence Our engineers have designed SLOTTED ANGLE FRAMEWORK RACKS.

These racks can be made in Various sizes ( Length’s up to 3000mm x depth up to 1800mm) with having a loading capacity of 100 kgs to 1000 kgs per level.

These racks can use plywood, Metal, Wiremesh for covering or Its can be used as a skeleton frame as well.

Slotted Angle Frame Work Racks can be made in a single tier, 2 tier system or even 3 tier system Due to its flexibility we can customize the design and loading capacity to suit the User's needs and specifications.

Advantages Of Shelving Racks :

  • Highly flexible system
  • Easy to construct
  • Heavy loading capacity
  • Economical on cost
  • Large number of sizes available
    • Height2000mm (6'6")
    Width
    		1800mm (6')
    Depth900mm (3')
    Level4
    Load/Level280kg - 300kg
    Load/Rack1120kg - 1200kg

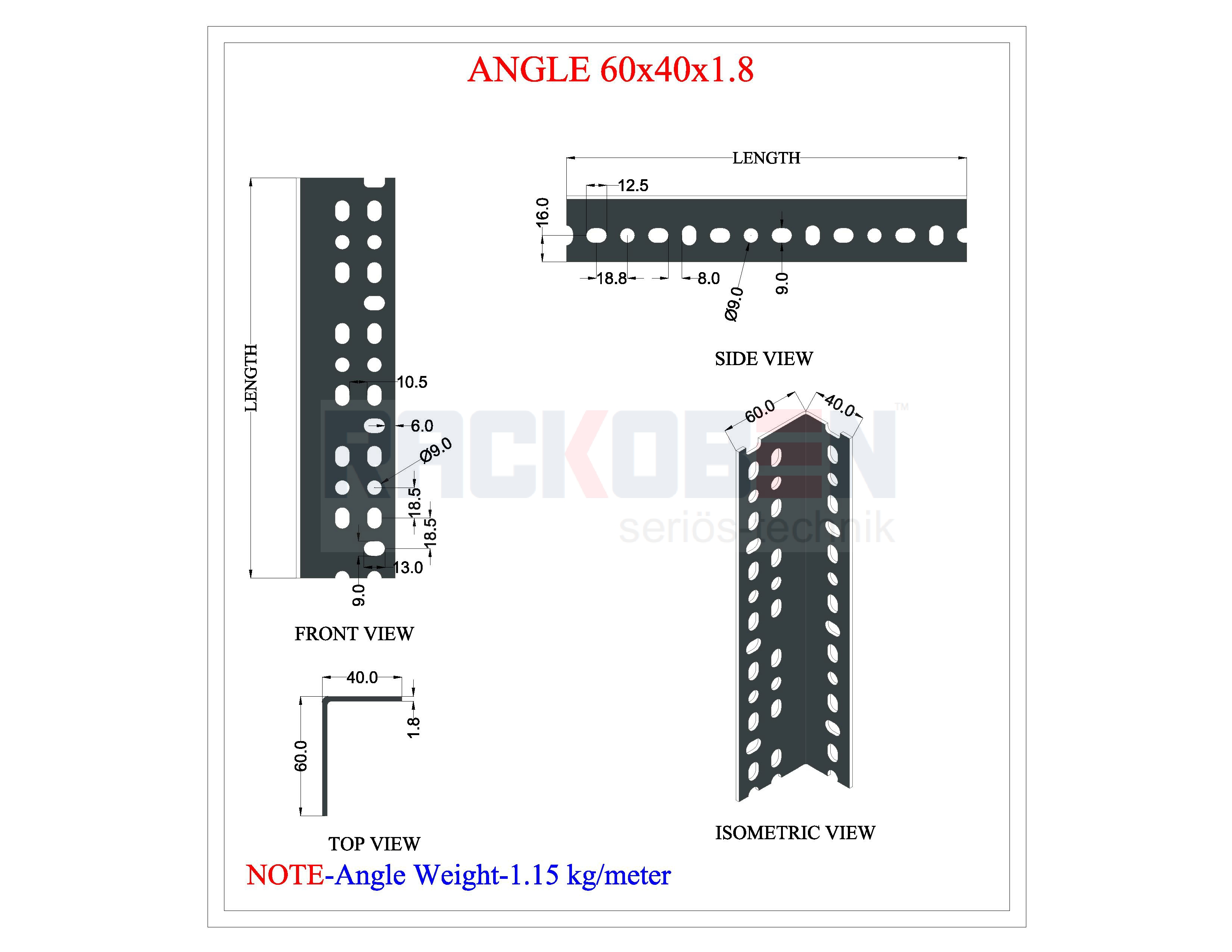

    Angle used60/40x40x1.8mm THK
    Corner Plate72x72x0.8mm THK
    Rubber ShoeSTD

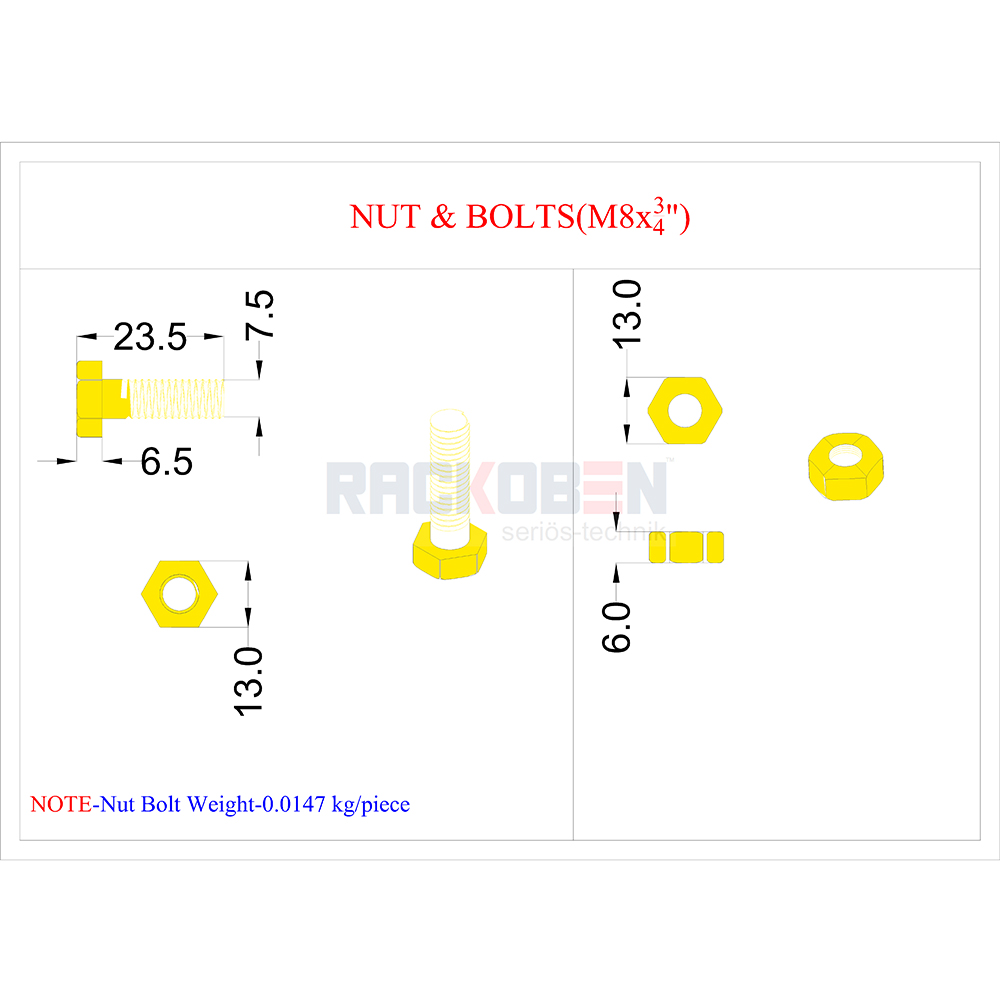

    Nut & BoltsM8 Size
    PlywoodNot Included
    Piller Used60x40x1.8mm THK "L" Angle
    Front & Back Support60x40x1.8mm THK Double Angle "C" support
    Side Support60x40x1.8mm THK Double Angle "C" support
    Center Support40x40x1.8mm THK Double Angle "T" support
    • Standard Allowable Deflection – L/180 (e.g. 2700mm length then 2700/180= 15mm allowable deflection).
    • Delivery Period of the product shall depend on the quantity purchased, minimum 5 days – Maximum 4 weeks , our team shall co-ordinate with you once the order is placed.
    • Unloading shall be in customers scope .
    • Installation is not included in the given product ( you can opt for installation services in "My Services".
    • Product shall come in standard paper/plastic packing.
    • The weight of the actual product may vary 5-7%.
    • All prices are subject to market change * .
    Height 2000mm (6'6")
    Width 1800mm (6')
    Depth 900mm (3')
    Weight 75.15
    Level 4
    Steel-used Tata Steel/Sail/Ispat/Jindal
    Warranty 2 years
    Paint Grey/Powder Coated/Raw
    HSN code 73012010
    SEC code 996729
