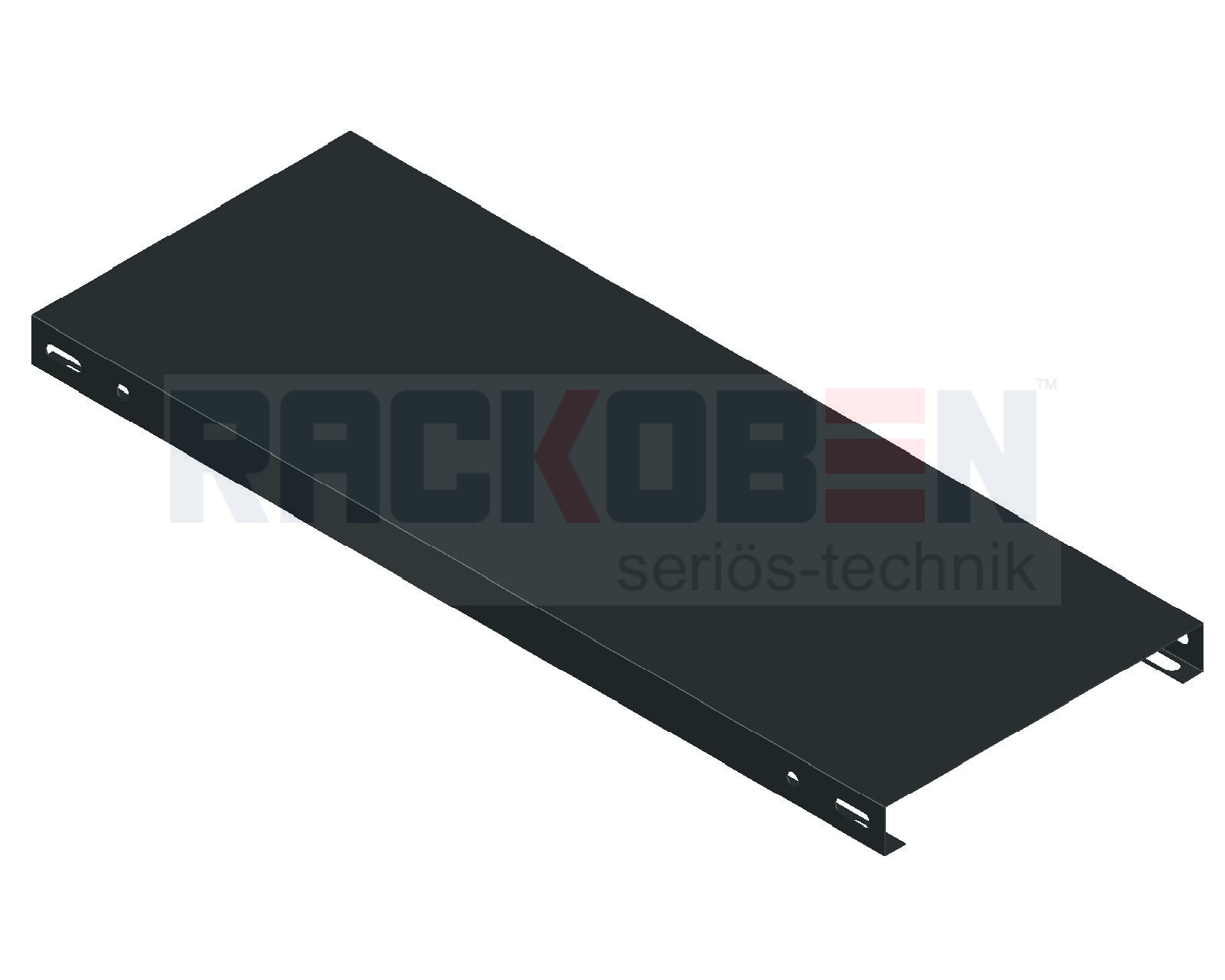

Rackoben Sectional Panel 19 Gauge 225x30x1.0
Sectional Panels are 4 Bend Panels with sides open , this kind of panels are used in Heavy Duty Racking , Odd Size Racks , Floor Panels etc.. these are made in length starting from 600mm - 1500mm long and width of 150mm and 225mm with a thickness ranging from 0.60mm to 1.5mm thickness.
Types Of Slotted Angle Structures made out of slotted angle components
• Filing Racks
• Storage Racks
• Heavy Duty Storage Racks
• Extra Heavy Duty Storage Racks
• Slotted Angle Framework Racks
• Multi Tier Slotted Angle Racks
• Slotted Angle Mezzanine Floors
• Slotted Angle Sectional Panel Racks
• Slotted Angle Partitions
• Slotted Angle Work Benches
• Slotted Angle Multi Tier Mezzanine Floors
• Slotted Angle Partition Racks / Pigeon Hole Racks
• And many More Customised Systems as Slotted Angles is a flexible system ……

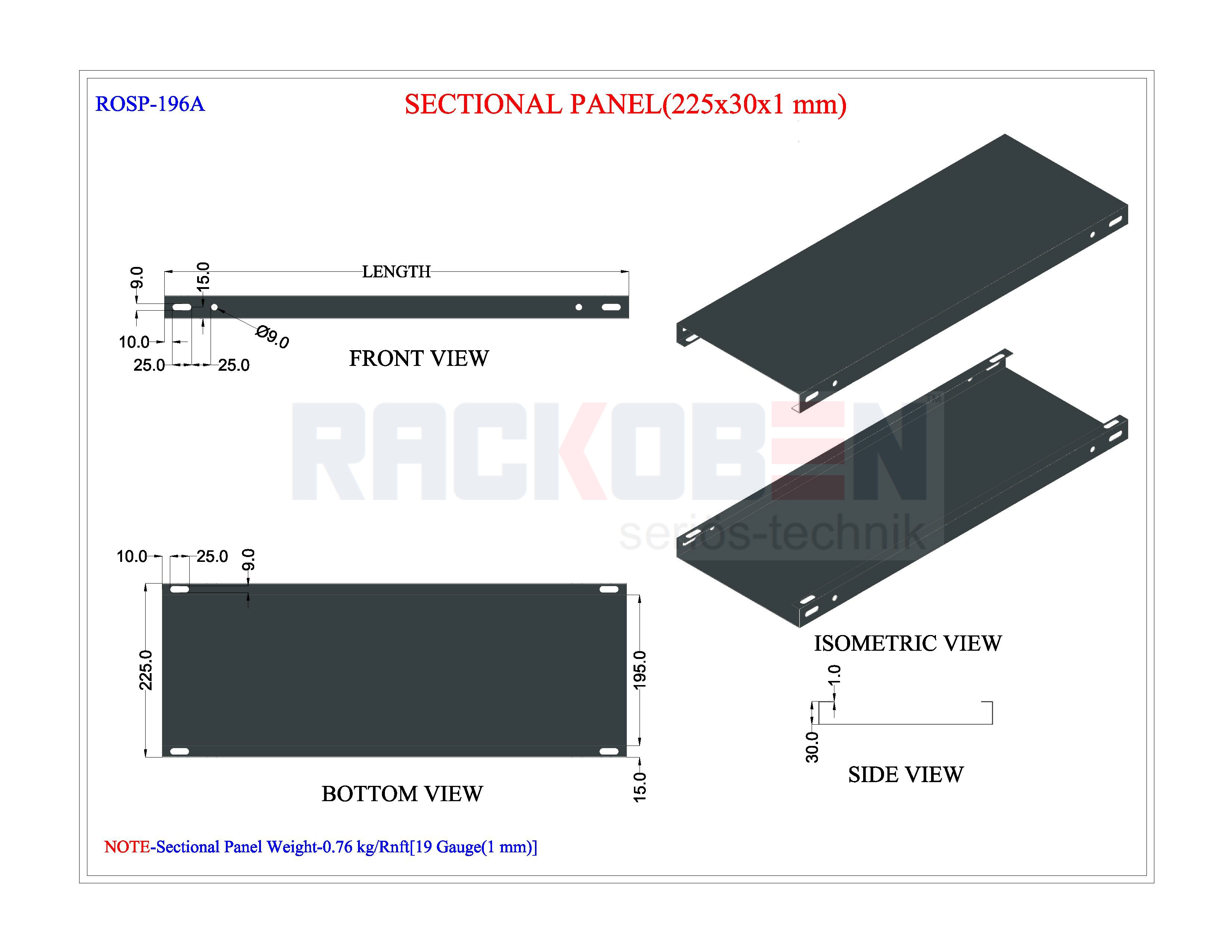

| BEND | 4 Fold |
| FRONT, BACK & SIDE BEND SIZE | 30mm |
| BOTTOM BEND SIZE | 15mm |
| PITCH | 17mm |
| HOLE DIA | 25mm,9mm |
| NO OF HOLES | 12 |
| THK | 1.0mm |
- Standard Allowable Deflection – L/180 (e.g. 2700mm length then 2700/180= 15mm allowable deflection).
- Delivery Period of the product shall depend on the quantity purchased, minimum 5 days – Maximum 4 weeks , our team shall co-ordinate with you once the order is placed.
- Unloading shall be in customers scope .
- Installation is not included in the given product ( you can opt for installation services in "My Services".
- Product shall come in standard paper/plastic packing.
- The weight of the actual product may vary 5-7%.
- All prices are subject to market change * .
| Weight | 0.76kg.Rnft |
|---|---|
| Size | 225x30x1.0mm THK |
| Steel-used | Tata Steel/Sail/Ispat/Jindal |
| Gauge | 19 Gauge |
| Warranty | 2 years |
| Paint | Grey/Powder Coated/Raw |
| HSN code | 73012010 |
| SEC code | 996729 |
