Long Span Shelving Racks 3000X2700X1000 Level 3 Main Unit - ROLS-043
Medium Duty Racks are an absolute storage system perfect for warehouse and industrial applications. These characteristically include automotive and other spare hardware, parts, bulk retail, and common purposes carton and archive storage. The Medium Duty Storage Racks can be configured to accommodate a wide range of storage requirements. These racks are suitable for the storage of small boxes and cartons. Further, these racks are available with an adjustable shelving system along with the load-bearing capacity up to 1.2 ton per level.
Features:
- Lightweight
- Good Durability
- Superb Accuracy
- Fine finishing
- Very long lasting
- Superior strength
- Easy to install and assemble
- It’s Adjustable Shelving System, with Load Bearing Capacity up to 1.2 Tons per Level
- It is an Ideal Storage for Small Boxes and Cartons using Decking Panel only
- The Loading & Unloading can be done manually
- Ergonomically Designed & Easy to Assemble.
Ideal For:
- Easy assembly and good appearance
- Manual loading and unloading
| Height | 3000mm |
| Width | 2700mm |
| Depth | 1000mm |
| Level | 3 |
| Load/Level | 2000 kg |
| Load/Rack | 6000 Kg |

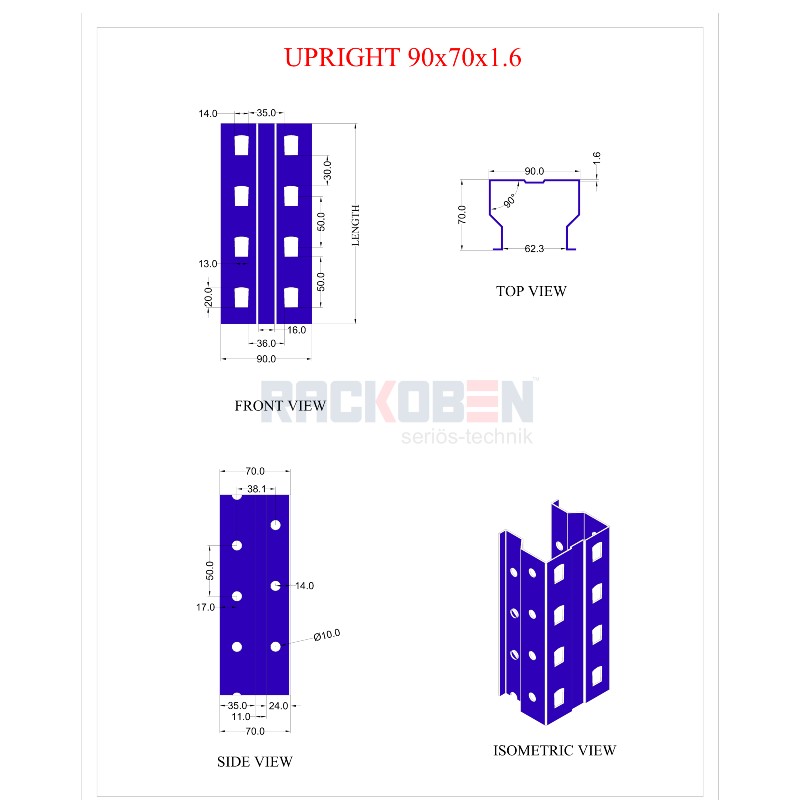

| Piller Used | 90mmx70mm |
| Beam Used | 120x50x1.6mm with 4 lip connector welded |
| Deck Panel Size | 1000mmx30mmx150mmx30mmx0.9mm thick |
| Bracing | 30mmx29mmx1.6mm thick ,galvanized |
| Base Plate | 3 mm thick ( powder coated) |
| Nut & Bolts | M10/M12 |
| Anchor Bolt | M12x100mm/M10x75mm |
| Beam Lock | Standard |
| Coating | Powder coating 92 micrones + |
| Pillar Colour | Oxford blue |
| Beam Colour | Orange |
| Deck Panel colour | Galvanized steel |
- Standard Allowable Deflection – L/180 (e.g. 2700mm length then 2700/180= 15mm allowable deflection).
- Delivery Period of the product shall depend on the quantity purchased, minimum 5 days – Maximum 4 weeks , our team shall co-ordinate with you once the order is placed.
- Unloading shall be in customers scope .
- Installation is not included in the given product ( you can opt for installation services in "My Services".
- Product shall come in standard paper/plastic packing.
- The weight of the actual product may vary 5-7%.
- All prices are subject to market change * .
| Height | 3000mm |
|---|---|
| Width | 2700mm |
| Depth | 1000mm |
| Weight | 307.74 |
| Level | 3 |
| Unit-type | Main Unit |
| Steel-used | Tata Steel/Sail/Ispat/Jindal |
| Warranty | 2 years |
| Load | 2000 kg |
| HSN code | 73089090 |
| SEC code | 996729 |
